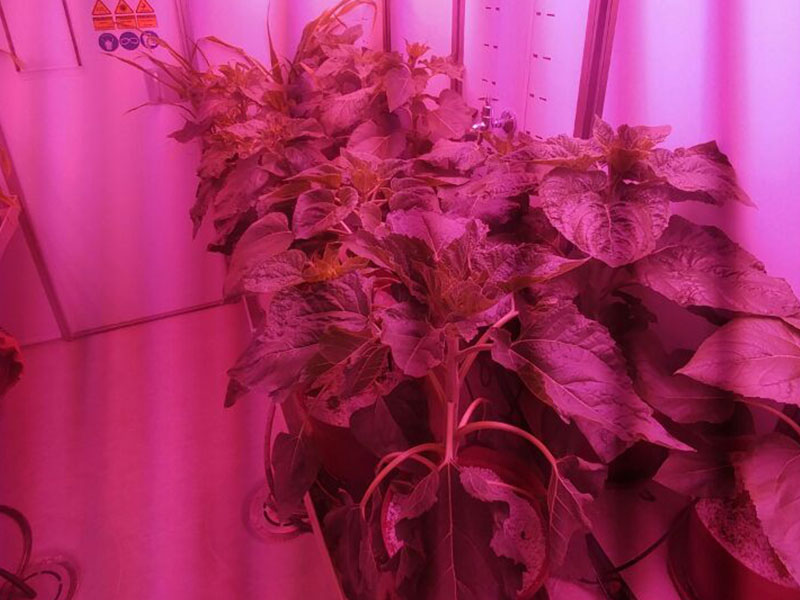

The Modular Plant Chamber is a portable, stand-alone walk-in facility suitable for a wide range of research applications. Adjustable shelving supports the growth of both tall and short plants, and tissue-culture and incubation conditions are defined by the user during the design phase. Each chamber is equipped with an integrated building management system that supports experiment-specific settings across a broad environmental control range.

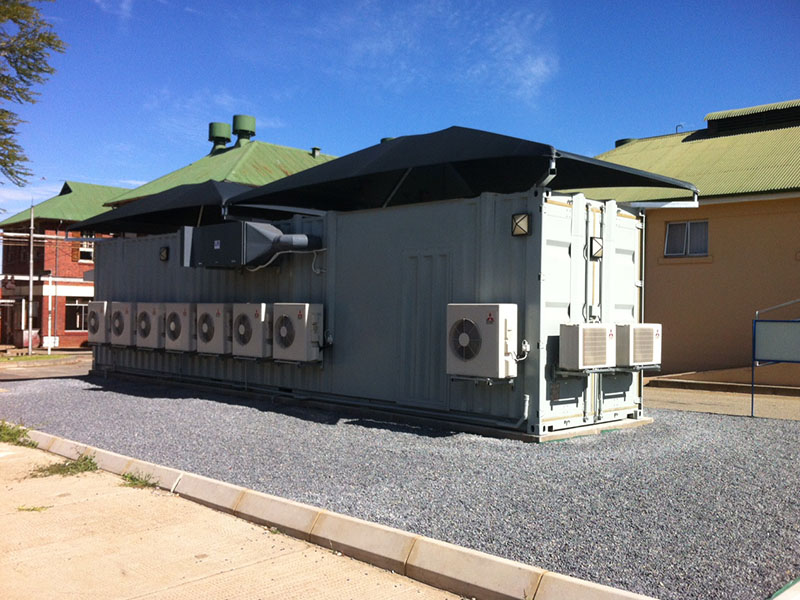

External view of modular lab structure fitted with numerous AC units, indicating BSL-2+ capability.

Typical parameters and options:

Lighting

  • Fixed-wavelength fluorescent tube lighting.

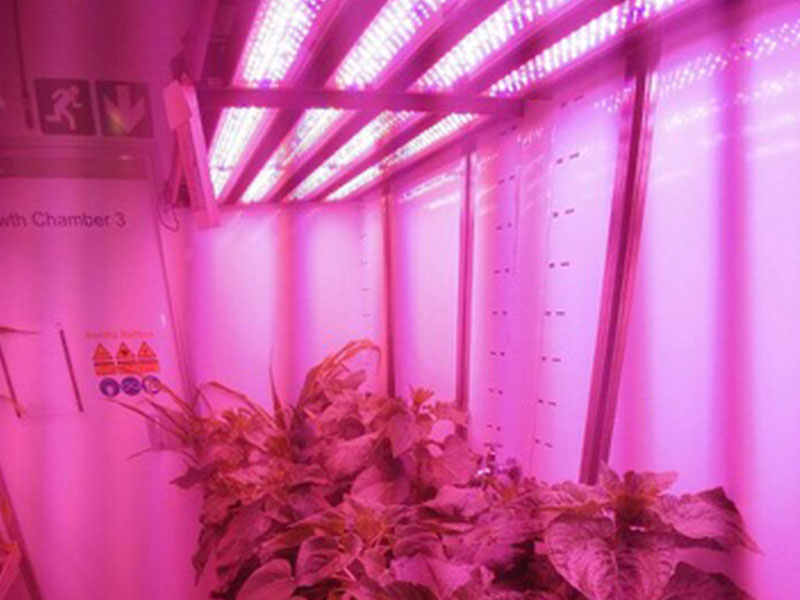

  • Custom-developed high-PAR LED lighting with adjustable wavelengths and colour settings.

Configuration

  • Chambers available in single or multi-chamber arrangements, up to four chambers per unit.

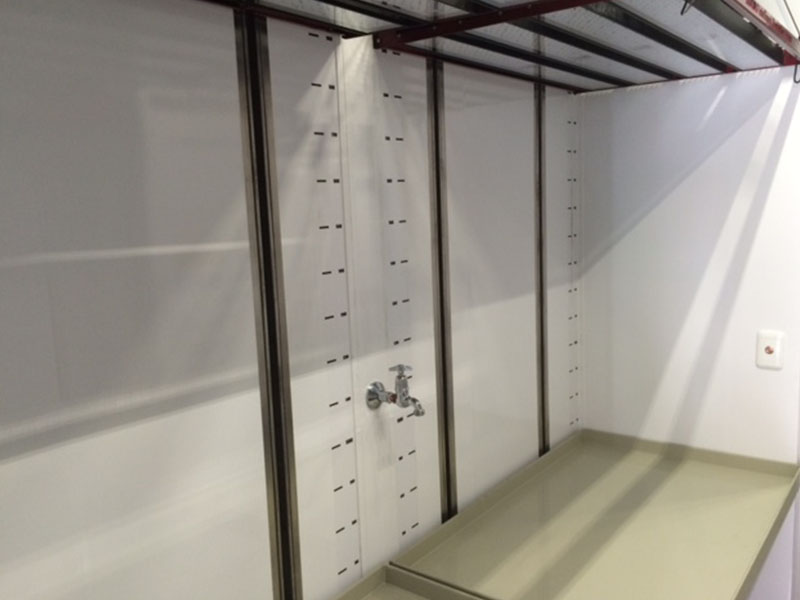

  • Adjustable shelving providing up to 66 m² total shelf surface.

Services

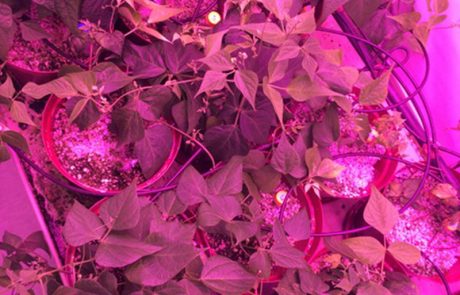

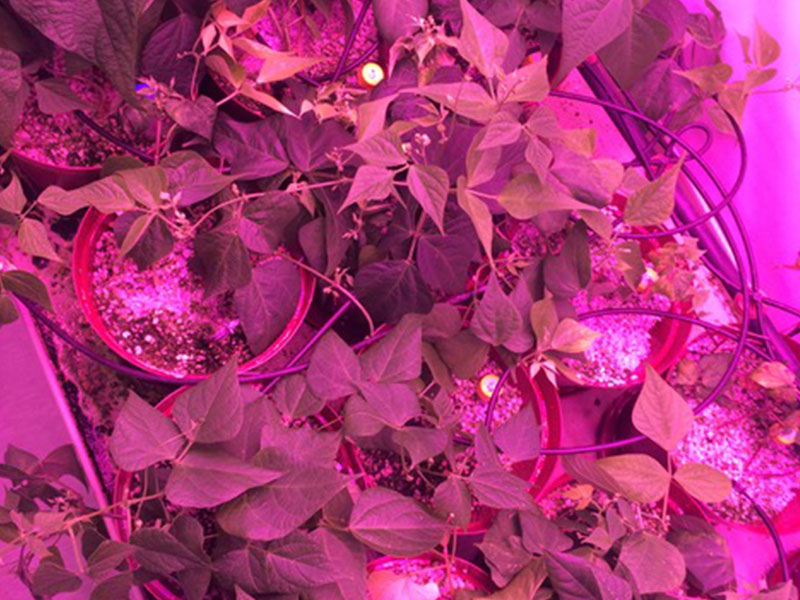

  • Irrigation system, manual or programmable.

  • Electrical service outlets.

  • HMI display.

  • Remote monitoring and data logging.

  • CO₂ addition, programmable.

Environmental Control

  • Temperature: 18 °C to 40 °C

  • Relative humidity: 30 percent to 90 percent

  • Lighting control: on/off switching

  • Air quality: HEPA filtration with a final efficiency of 99.97 percent

Access Control and Safety Systems

  • Key lock with biometric access control and emergency escape override.

  • Fire alarm system.

Detachable, Lockable Utilities Chamber

Fitted with the following integrated systems:

  • Water-chiller based cooling and heating system.

  • Supply and return air handling with filtration.

  • Steam humidification system.

  • Supply-water treatment system.

  • Main electrical control panel.

  • Programmable logic controller (PLC).

  • Carbon Dioxide cylinder housing.
